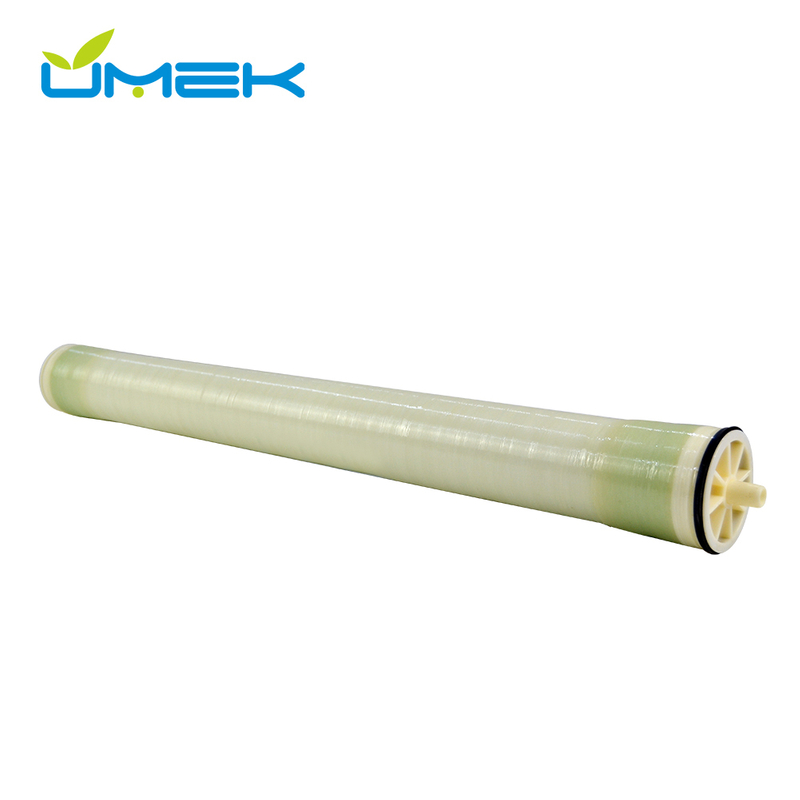

Toray 8040 Ro Membrane Price


Toray 8040 Ro Membrane Price

Brief Introduction

Toray 8040 Ro Membrane Price is mainly applied to the treatment of various industrial waters such as industrial pure water and boiler make-up water for power plants. It can also be applied to brackish water applications such as the treatment of high concentration saline wastewater and the production of beverage water.

Specifications and Major Properties

Testing Conditions:

Testing Pressure: 150 psi (1.03Mpa)

Temperature of Testing Solution: 25°C

Concentration of Testing Solution (NaCl): 1500ppm

pH Value of Testing Solution: 7.5

Recovery Rate of Single Membrane Element: 15%

Extreme Operation Conditions

Max. Working Pressure: 600psi(4. 14Mpa)

Max. Feedwater Flow: 75gpm(17 m3/h) (8040)

16gpm (3.6 m3/h) (4040)

Max. Feedwater Temperature: 45°C

Max. Feedwater SDI: 5

Residual chlorine Concentration of Feedwater: < 0.1ppm

pH Range of Feedwater during Continuous Operation: 3~10

pH Range of Feedwater during Chemical Cleaning: 2~12

Max. Pressure Drop of Single Membrane Element: 15psi(0.1Mpa)

Dimensions of Membrane Element

All dimensions are shown in: millimeter (inch)

Dimensions of Membrane Element (1)

Dimensions of Membrane Element (2)
