Brief Introduction

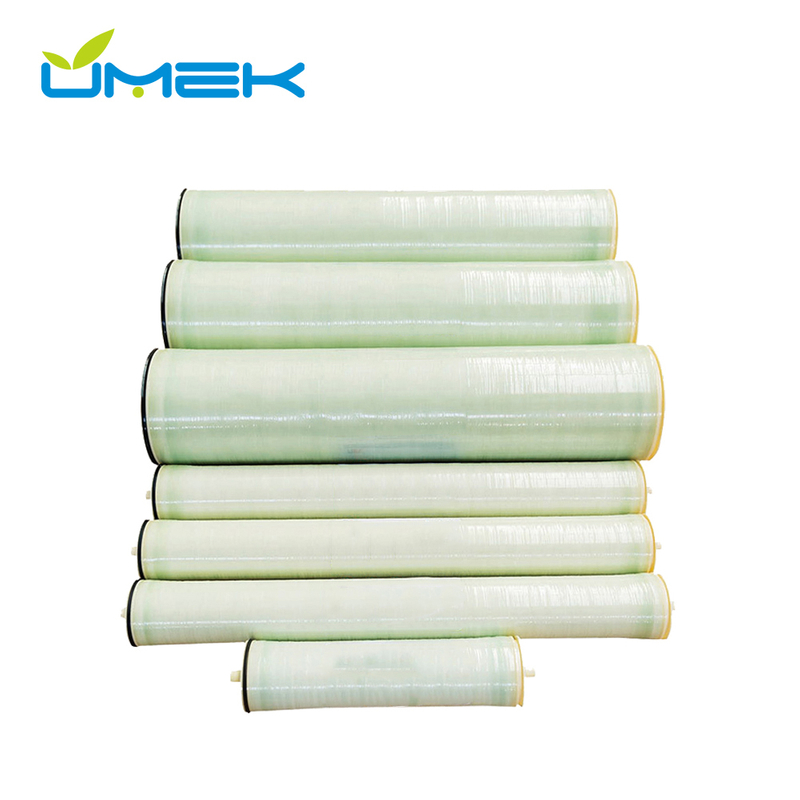

SW series membrane elements are generally suitable for the treatment of seawater and highly concentrated brackish water, and can be used for desalination of seawater, desalination of highly concentrated brackish water, power plant boiler make-up water and other industrial water treatment, as well as for the reuse of waste water, concentration and recovery of high value-added substances such as food and pharmaceuticals.
Specifications and Major Properties
| Model | Average Permeated Flow GPD (m3/d) | Stable Rejection Rate (%) | Minimum Rejection Rate (%) |
SW30HRLE-8040 | 7500(28.4) | 99.85 | 99.6 |
SW30XLE-8040 | 9000(34.1) | 99.8 | 99.6 |
| SW-4040 | 1400(5.3) | 99.7 | 99.5 |
Testing Conditions:
Testing Pressure: 800 psi (5.5Mpa)
Temperature of Testing Solution: 25°C
Concentration of Testing Solution (NaCI): 32000ppm
pH Value of Testing Solution: 7.5
Recovery Rate of Single Membrane Element: 15%
Extreme Operation Conditions
Max. Working Pressure: 1000psi(6.9Mpa)
Max. Feedwater Flow: 75gpm(17m3/h) (8040)
16gpm (3.6 m3/h) (4040)
Max. Feedwater Temperature: 45°C
Max. Feedwater SDI: 5
Residual chlorine Concentration of Feedwate: < 0.1ppm
pH Range of Feedwater during Continuous Operation: 3~10
pH Range of Feedwater during Chemical Cleaning: 2~12
Max. Pressure Drop of Single Membrane Element: 15psi(0. 1Mpa)
Dimensions of Membrane Element
All dlimensions are shown in: millimeter (inch)
