Brief Introduction

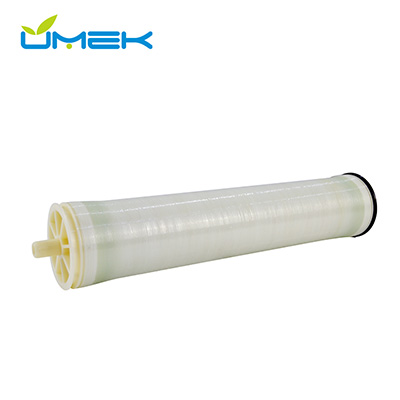

The LP-8040 RO Membrane adopts the world-renowned aromatic polyamide composite membrane for desalination with bitter alkaline water.
It has the characteristics of low pressure operation, high water production and good desalination performance.
In addition, it has a high performance of removing soluble salts, TOC, SiO2, and is especially suitable for the preparation of high-purity water in the electronics and power industries.
Specifications and Major Properties
| Model | Average Permeated Flow GPD (m3/d) | Stable Rejection Rate (%) | Minimum Rejection Rate (%) |
| IWL 21-8040 | 10000(37.8) | 99.5 | 99.2 |
| IML 22-8040 | 11000(41.5) | 99.5 | 99.2 |
| IWL 21-4040 | 2500(9.4) | 99.5 | 99.2 |
Testing Conditions:
Testing Pressure: 225 psi (1.55Mpa)
Temperature of Testing Solution: 25°C
Concentration of Testing Solution (NaCl): 2000ppm
pH Value of Testing Solution: 7.5
Recovery Rate of Single Membrane Element: 15%
Extreme Operation Conditions
Max. Working Pressure: 600psi(4. 14Mpa)
Max. Feedwater Flow: 75gpm(17 m3/h) (8040)
16gpm (3.6 m3/h) (4040)
Max. Feedwater T emperature: 45°C
Max. Feedwater SDI: 5
Residual chlorine Concentration of Feedwater: < 0.1ppm
pH Range of Feedwater during Continuous Operation: 3~10
pH Range of Feedwater during Chemical Cleaning: 2~12
Max. Pressure Drop of Single Membrane Element: 15psi(0.1Mpa)
Dimensions of Membrane Element
All dimensions are shown in: millimeter (inch)
