RO reverse osmosis membrane water purification operation costs and labour costs are low, reducing environmental pollution. The change in water quality due to fluctuations in source water quality is mitigated, thus contributing to the stability of water quality in production, which has a positive effect on the stability of pure water product quality.

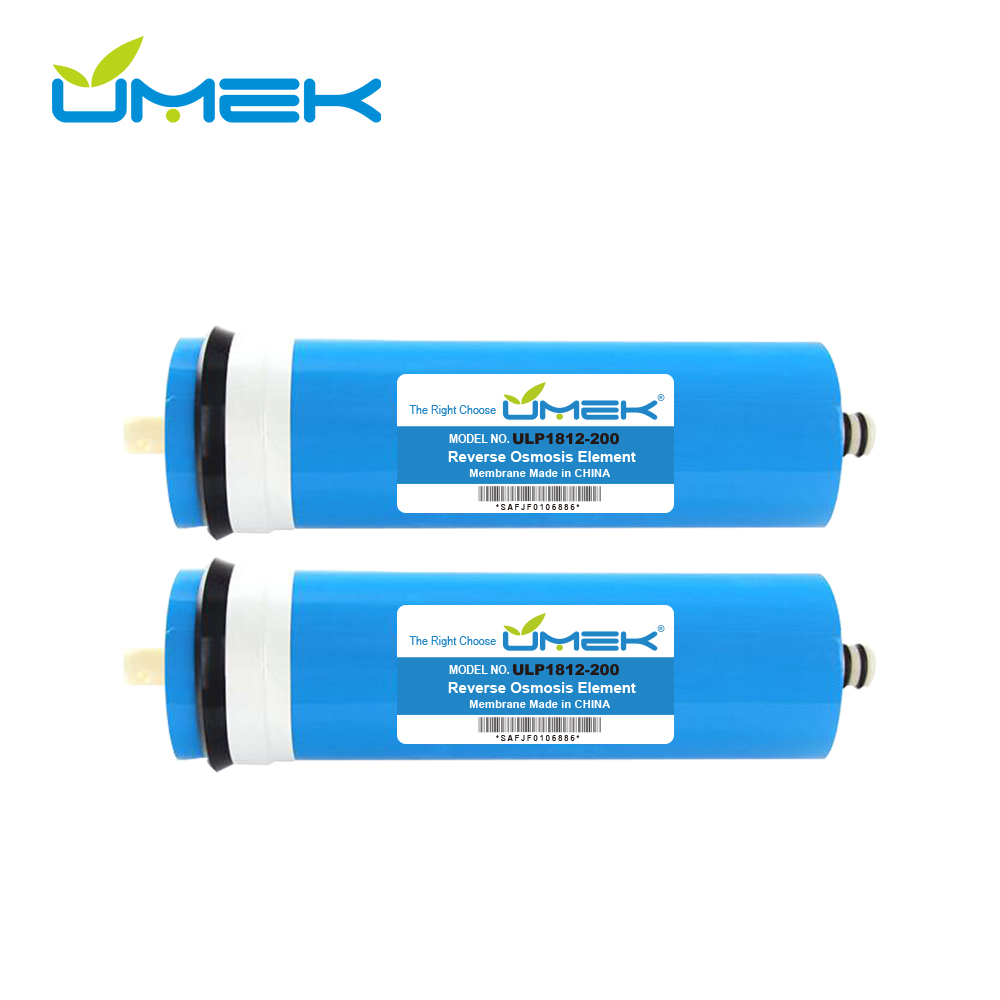

Specifications and main performance of membrane elements
| Type | Model | Reject (%) | Average Permeate GPD (m3/d) | Working Pressure & Application | Testing Conditions | ||
| Pressure psi (MPa) | Solution Concentr. (PPm) | Recovery Rate (%) | |||||
| Household RO Membrane | UM1812-50 | 99.0 | 50(0.2) | Working under extremely low pressure. Applicable to residential water purifier and water purifying devices in hospital and laboratory water treatment with TDS lower than 500 ppm. | 60 (0.41) | 250 | 15 |
| UM1810-50 | 97.0 | 50(0.2) | |||||
| UM1812-75HR | 99.0 | 75 (0.28) | |||||
| UM1812-75 | 97.0 | 75 (0.28) | |||||
| UM-2012-100HR | 99.0 | 100 (0.38) | |||||
| UM-2012-100 | 97.5 | 100 (0.38) | |||||
| UM-2012-150 | 97.5 | 150(0.57) | |||||
| Special Size RO Membrane | UM-2812-200 | 97.0 | 200(0.76) | working under extremely low pressure. Applicable to automatic water dispenser and residential drinking fountain. | 100 (0.69) | 250 | 20 |
| UM-3012-300 | 97.0 | 300(1.14) | 100 (0.69) | 250 | 20 | ||
| UM-3012-400 | 97.0 | 400(1.51) | 100 (0.69) | 250 | 20 | ||
| UM-3013-400 | 97.0 | 400(1.51) | 100 (0.69) | 250 | 20 | ||
| UM-3012-500 | 97.0 | 500(1.89) | 100 (0.69) | 250 | 20 | ||
| UM-3013-500 | 97.0 | 500(1.89) | 100 (0.69) | 250 | 20 | ||
| UM-3013-600 | 97.0 | 600(2.27) | 100 (0.69) | 250 | 20 | ||
| UM-3013-700 | 97.0 | 700(2.65) | 100 (0.69) | 250 | 20 | ||
Test conditions: Test pressure: 100 psi (0.69Mpa)
Test fluid temperature: 25 °C
Test solution concentration (NaCI): 250ppm
pH value of test solution: 7.5
Single membrane element recovery rate: 20%
Extreme usage conditions
Maximum operating pressure: 300psi (2.07Mpa)
Maximum inlet water temperature: 45°C
Maximum water intake SDI: 5
Influent free chlorine concentration: <0.1 ppm
Influent pH range during continuous operation: 3~10
pH range of inlet water during chemical cleaning: 2~ 12
Maximum pressure drop of a single membrane element: 10psi (0.07Mpa)
Membrane element size
All units of the icon are: mm (inch)
Product Advantages
1. High desalination and water reuse rates, and can retain solutes with particle sizes of several nanometres or more.
2. The separation of solutes and water can be carried out at room temperature without phase change, which is suitable for the separation and concentration of heat-sensitive substances and has lower energy consumption compared to separation methods with phase change.
3. The use of low pressure as the membrane separation power, so the separation device is simple, easy to operate, maintain and self-control, site safety and health.
4. Reverse osmosis membrane separation technology has a wide range of impurity removal.
If you would like to know more about our RO membranes, please contact us！
