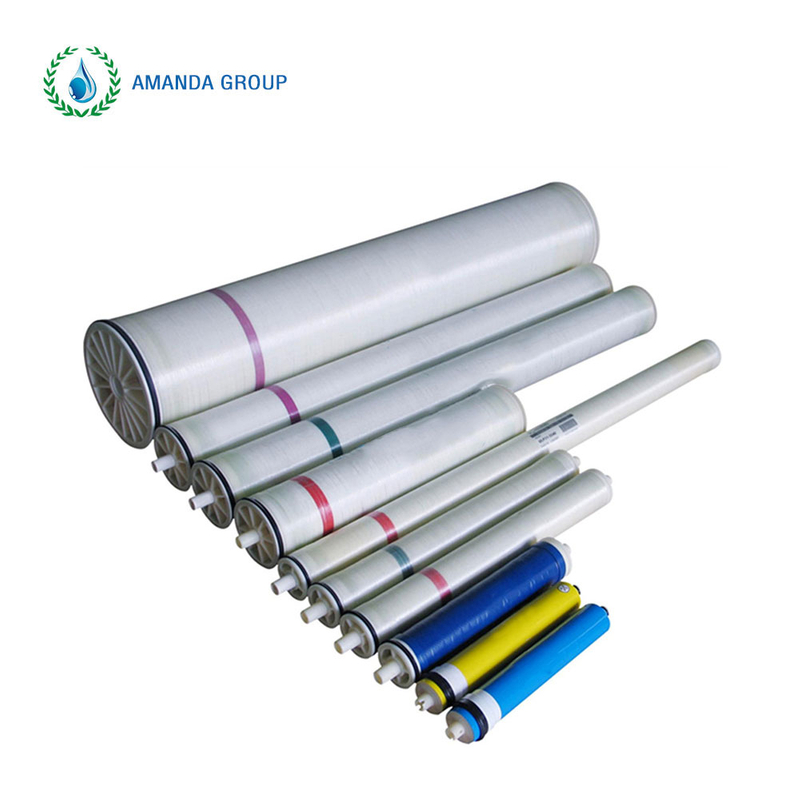

Drinking Water Treatment Ro Filter System Plant Reverse Osmosis Ro Membrane

Drinking Water Treatment Ro Filter System Plant Reverse Osmosis Ro Membrane Introduction

This low pressure reverse osmosis membrane  is suitable for  water purification applications of  water sources with salt concentration lower than 2000 ppm, such as surface water, underground water, tap water and municipal water, etc.

Specifications and Major Properties

Testing Conditions:

Testing Pressure: 150 psi (1.03Mpa)

Temperature of Testing Solution: 25°C

Concentration of Testing Solution (NaCl): 1500ppm

pH Value of Testing Solution: 7.5

Recovery Rate of Single Membrane Element: 15%

Extreme Operation Conditions

Max. Working Pressure: 600psi(4. 14Mpa)

Max. Feedwater Flow: 75gpm(17 m3/h) (8040)

16gpm (3.6 m3/h) (4040)

Max. Feedwater Temperature: 45°C

Max. Feedwater SDI: 5

Residual chlorine Concentration of Feedwater: < 0.1ppm

pH Range of Feedwater during Continuous Operation: 3~10

pH Range of Feedwater during Chemical Cleaning: 2~12

Max. Pressure Drop of Single Membrane Element: 15psi(0.1Mpa)

Dimensions of Membrane Element

All dimensions are shown in: millimeter (inch)
