Brief Introduction
The SW membrane element offers the highest quality water output from seawater and highest productivity while maintaining excellent salt rejection. This reliable performance is the result of improved membrane combined with automated, precision element fabrication.
Specifications and Major Properties
Model | Average Permeated Flow GPD (m3/d) | Stable Rejection Rate (%) | Minimum Rejection Rate (%) |
SW30HRLE-8040 | 7500(28.4) | 99.85 | 99.6 |
SW30XLE-8040 | 9000(34.1) | 99.8 | 99.6 |
SW-4040 | 1400(5.3) | 99.7 | 99.5 |
Testing Conditions:
Testing Pressure: 800 psi (5.5Mpa)
Temperature of Testing Solution: 25°C
Concentration of Testing Solution (NaCI): 32000ppm
pH Value of Testing Solution: 7.5
Recovery Rate of Single Membrane Element: 15%
Extreme Operation Conditions
Max. Working Pressure: 1000psi(6.9Mpa)
Max. Feedwater Flow: 75gpm(17m3/h) (8040)
16gpm (3.6 m3/h) (4040)
Max. Feedwater Temperature: 45°C
Max. Feedwater SDI: 5
Residual chlorine Concentration of Feedwate: < 0.1ppm
pH Range of Feedwater during Continuous Operation: 3~10
pH Range of Feedwater during Chemical Cleaning: 2~12
Max. Pressure Drop of Single Membrane Element: 15psi(0. 1Mpa)

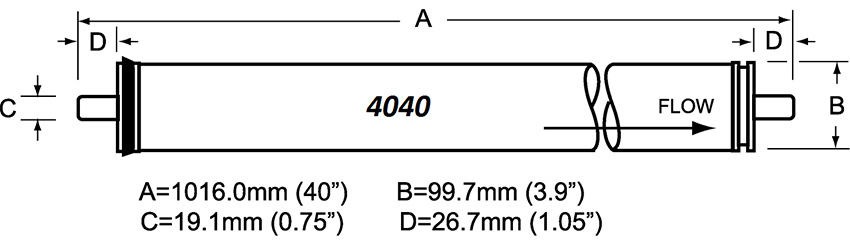

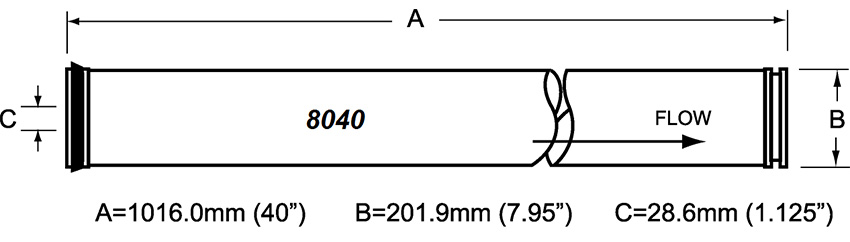

Dimensions of Membrane Element
All dlimensions are shown in: millimeter (inch)
Product Advantages
SW RO elements provide longer life due to high cleanability.
High Salt rejection for high quality permeate.
High flux reduces energy used and pressure required.
Good rejection provides good water quality.
If you would like to know more about our RO membranes, please contact us!
